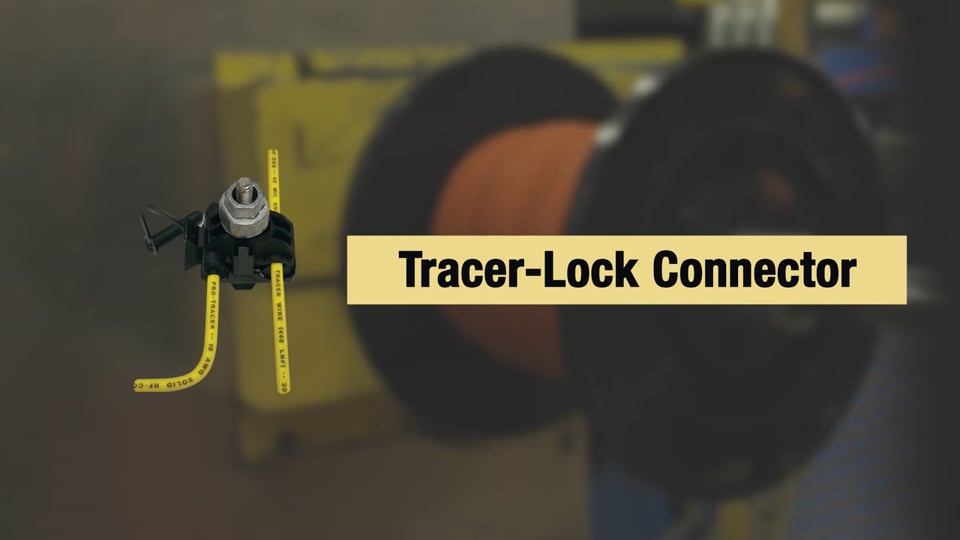

Tracer-Lock Connector

Details

Environment:
Outdoor, Underground, Utility Conduit System
Environmental Protection:
Chemical Resistant, Corrosion Resistant, Crush Resistant, Moisture Resistant, Waterproof
Application:
Locating
Industry:
Construction, Sewer Utility, Electric Utility, Oil & Gas Utility, Telecommunications Utility, Water Utility
Associated Brand:
Pro-Line

Conductor Type Compatibility
Size	Copper	HF-CCS	HS-CCS	HDD-CCS	SSAC-T304
18-8 AWG	Solid or Stranded	Solid or Stranded	Solid or Stranded	Solid or Stranded	Solid or Stranded

Insulation Type Compatibility
PVC/NYLON	PVC	LDPE, LLDPE, HDPE, XLPE, HMWPE
(MIN O.D. = 0.100”) (MAX O.D. = 0.225”)	(MIN O.D. = 0.100”) (MAX O.D. = 0.225”)	(MIN O.D. = 0.100”) (MAX O.D. = 0.225”)

Connector (Physical and Electrical Properties)
Measurements	Typical Values
Connector Size	2.56” ( H ) x 1.88” ( W ) x 1.77” (D)
Maximum Voltage	1,000 volts
Wire Range	Min #18 / Max #8
Temperature Rating	105°C ( 221°F )
Silicone Sealant Temperature	-40°F to 400°F

Connector (Weights, Measurements, Packaging)
Part #	Product Description	Packaging	Weight Per Box
TL-LUG-SS	Tracer-Lock Connector	50 Bags/Box	8 lbs

Step #1
Loosen the Shear Head Nut to open up the Connector.
Step #2 Side-Tap
Position Side B of the connector at the desired location of the tracer main. Insert un-stripped end of lateral wire completely into Side A. Hand tighten to hold wires in place. ST
Step #2 Splice
Insert un-stripped end of tracer wire completely into Side A. Insert un-stripped end of new tracer wire into Wire Sleeve, then position into Side B. Hand tighten to hold wires in place.
Step #3
After wires are in place, use a 1/2” (13mm) socket wrench or drill. At 70lbs/in torque, the Shear Head Nut will break away.
