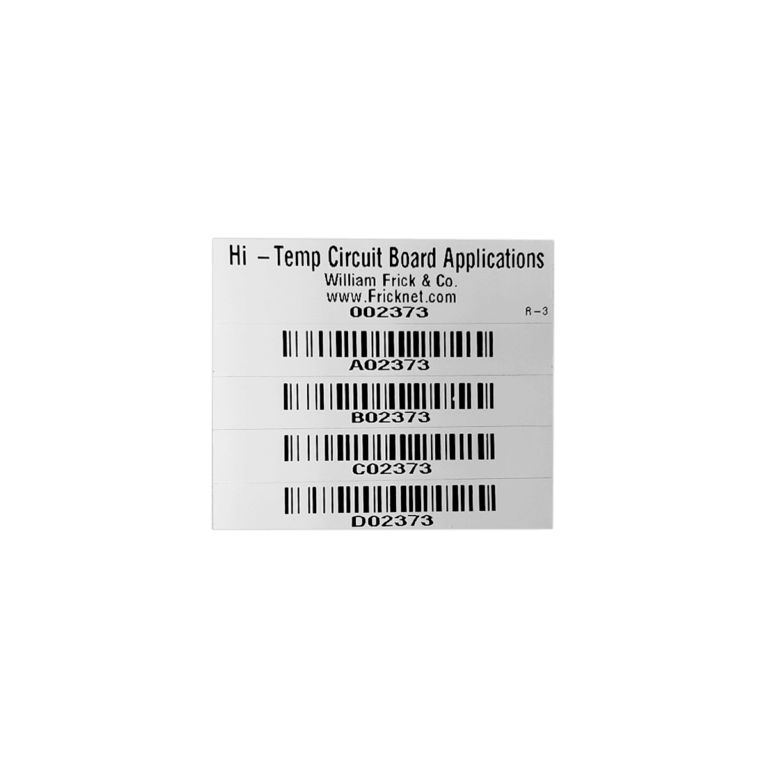

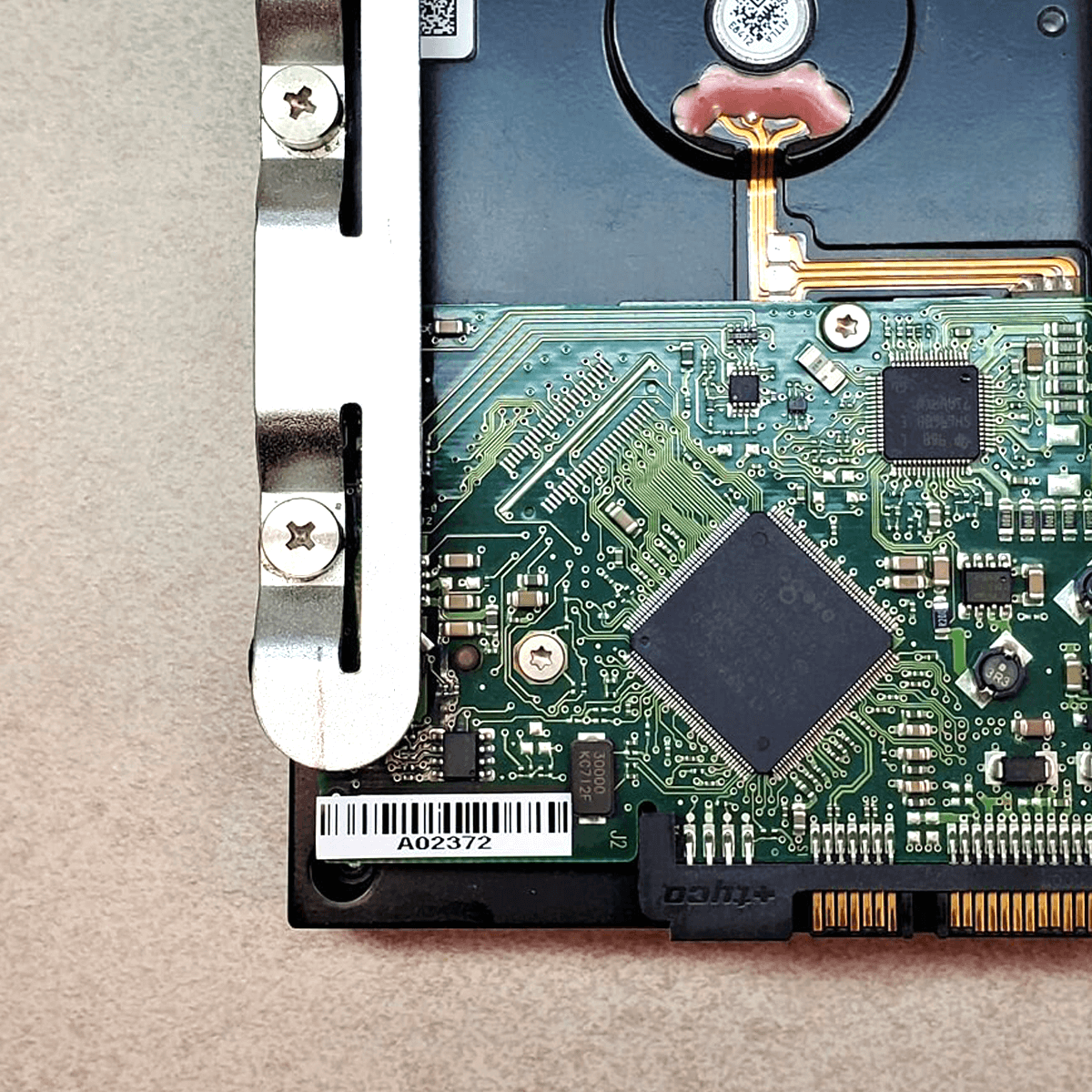

Our High Temperature Labels are designed for identification of high-heat items like circuit boards and related electronic components, where a soldering flux or wave soldering process is used or if the product will be exposed to a chemical cleaning cycle. Backed with a pressure-sensitive acrylic adhesive, these labels have excellent barcode readability after chemical and high-temp exposure.
Material:
Polyimide Facestock with Acrylic Adhesive
Thickness:
4.4 mil ± 10%
Temperature Exposure Range:
-40°F to 437°F
Minimum Installation Temperature:
50°F
Storage Instructions:
80ºF / 60% Relative Humidity, 1 Year
Estimated Lifespan:
7 – 10 Years
Environment:
Indoor, Outdoor
Environmental Protection:
Abrasion Resistant, Heat Resistant
Application:
Asset Management
| Test Method | Test Environment | PCS1 | Read Rate2 |
| Heat/Chemical Resistance Test–80386 | Control | 99% | 100% |
| Kyzen Corp. Aquanox SSA 30% aquesous, 40-45ºC, 5 min. | 100% | 99% | |
| Re-entry KNI 2000 Terpene 40-45ºC, 5 min. | 98% | 100% | |
| Alpha Metals 2110 Saponifier 10% aqueous, 65-70ºC, 5 min. | 97% | 100% | |
| Isopropanol 99%, 65-70ºC, 5 min. | 99% | 100% | |
| Kyzen XJN+, 30% 5 min. | 99% | 100% | |
| 1PCS – Print Contrast Signal. PCS determined with Quick Check 650, 0.005” aperture,660 nm wavelength. Quick Check 650 manufactured by: Photographic Sciences Corp. | |||
| 2Read rate determined using PSC 850 laser scanner. | |||
| Properties | Test Fluid | Results | |
| Chemical Resistance | Solvent A-1 part IPA, 3 parts mineral spirits | No visible effect | |
| Solvent B-1,1,1 Trichloroethane | Solvent deleted per notice 12 | ||
| Solvent C-Terpene Defluxer | No visible effect | ||
| Solvent D- Saponifier | No visible effect | ||
| Material | Rating |
| Acrylic | Very Good |
| HSE Plastics | Good |
| LSE Plastics | Fair |
| Glass | Good |
| Steel | Very Good |
