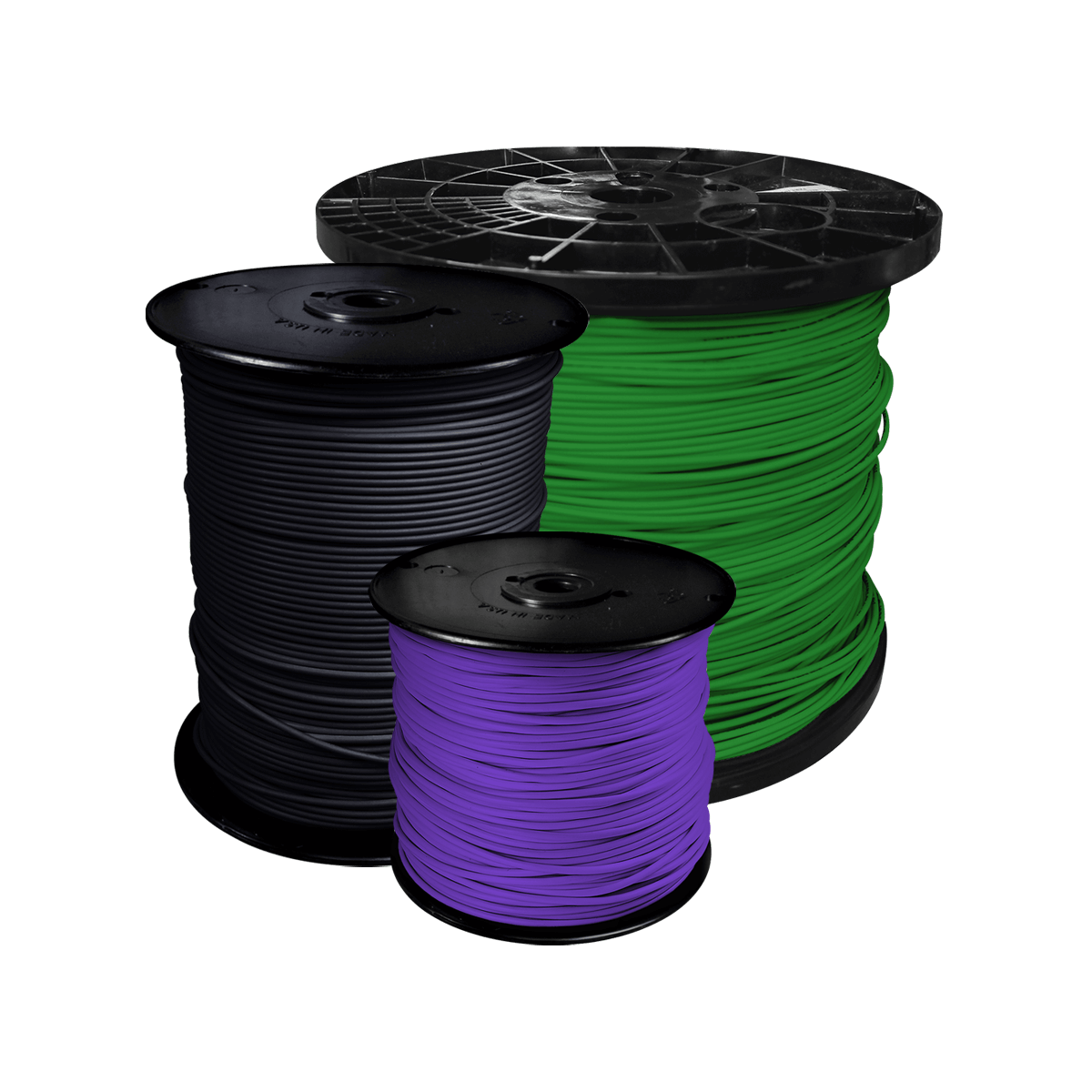

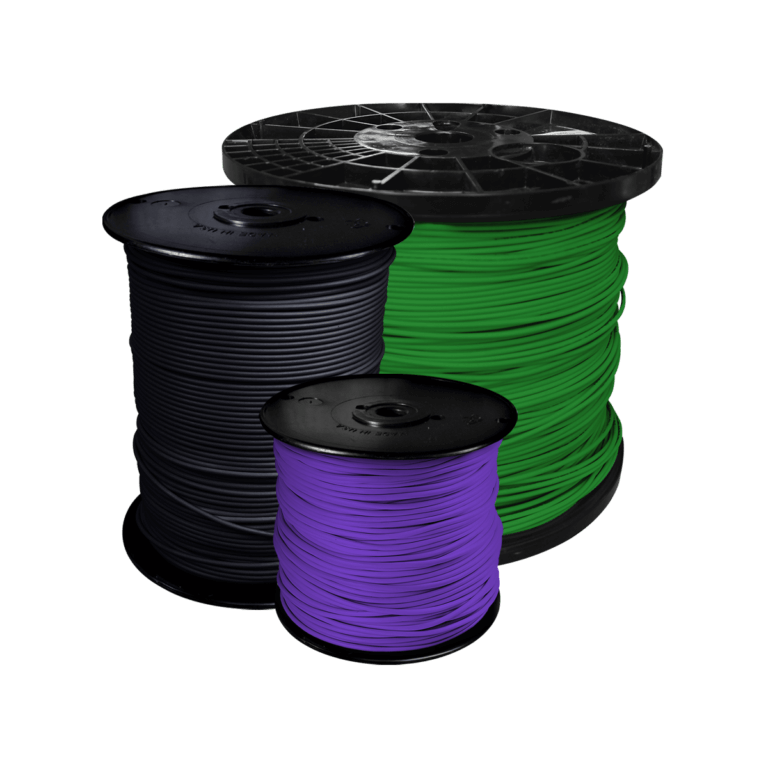

Copper TWU/UF

Details

Conductor Core Material:
Copper
Conductor Core Type:
Solid | Stranded
Gauge Size:
8 AWG | 10 AWG | 12 AWG | 14 AWG
Reel Size:
500’ | 1000’ | 2500’
Insulation Material:
Polyvinyl Chloride (PVC)
Color:
Insulation Thickness:
60 mil | 80 mil
Environment:
Construction Site, Farmland, Gas & Liquid Pipeline, Golf Course, Outdoor, Public Park, Sewer Pipeline, Underground, Utility Conduit System, Water Pipeline
Environmental Protection:
Abrasion Resistant, Acid Resistant, Chemical Resistant, Corrosion Resistant, Crush Resistant, Impact Resistant, Moisture Resistant, Oil Resistant
Application:
Irrigation, Locating
Industry:
Agriculture, Construction, Parks & Recreation, Sewer Utility, Electric Utility, Oil & Gas Utility, Telecommunications Utility, Water Utility
Compliance:
APWA Color Code, ASTM Standards, National Electrical Code, RoHS
Associated Brand:
Pro-Line

Insulation (Physical, Mechanical and Electrical Properties)
Test Description	ASTM Standard	Typical Values
Density @ 23°C	ASTM D792	0.945 g/cm³
Melt Flow Rate	ASTM D1238	0.8 g/10 min
Tensile Strength	ASTM D638	3,400 psi
Tensile Strength Retention	ASTM D638	90% after 48 hours @ 100°C
Tensile Elongation	ASTM D638	500%
Tensile Elongation Retention	ASTM D638	90% after 48 hours @ 100°C
Environmental Stress Cracking	ASTM D1693	0 failures @ 48 hours
Thermal Stress Cracking	ASTM D2951	0 failures @ 96 hours
Brittleness Temperature / Failures	ASTM D746	0 failures @ -76°C
Melting Point	ASTM D3418	130°C
Oxidative Induction Time	ASTM D3895	170 min @ 200°C
Dielectric Constant	ASTM D1531	2.32 @ 1 MHz
Dissipation Factor	ASTM D1531	0.00006 @ 1 MHz
DC Volume Resistivity @ 23°C	ASTM D257	> 1 x 10¹⁵ ohm-cm

Ordering Information (Weights, Measurements, and Packaging)
Part #	Gauge Size	Conductor Core Type	Insulation Thickness	Outer Diameter	Weight (Per 1,000′)	Reel Sizes
76003XXXX	14 AWG	Solid	0.060″ (60 mil)	0.185″	28.00 lbs	500′ \| 1000′ \| 2500′
76004XXXX	12 AWG	Solid	0.060″ (60 mil)	0.201″	37.00 lbs	500′ \| 1000′ \| 2500′
76005XXXX	10 AWG	Solid	0.060″ (60 mil)	0.222″	51.00 lbs	500′ \| 1000′ \| 2500′
76006XXXX	8 AWG	Solid	0.060″ (60 mil)	0.249″	76.00 lbs	500′ \| 1000′ \| 2500′
76008XXXX	14 AWG	7 Strands	0.060″ (60 mil)	0.193″	29.00 lbs	Call for Info
76010XXXX	12 AWG	7 Strands	0.060″ (60 mil)	0.212″	38.00 lbs	Call for Info
76012XXXX	10 AWG	7 Strands	0.060″ (60 mil)	0.236″	52.00 lbs	Call for Info
76014XXXX	8 AWG	7 Strands	0.060″ (60 mil)	0.266″	77.00 lbs	Call for Info
76016XXXX	6 AWG	7 Strands	0.080″ (80 mil)	0.344″	120.00 lbs	Call for Info
