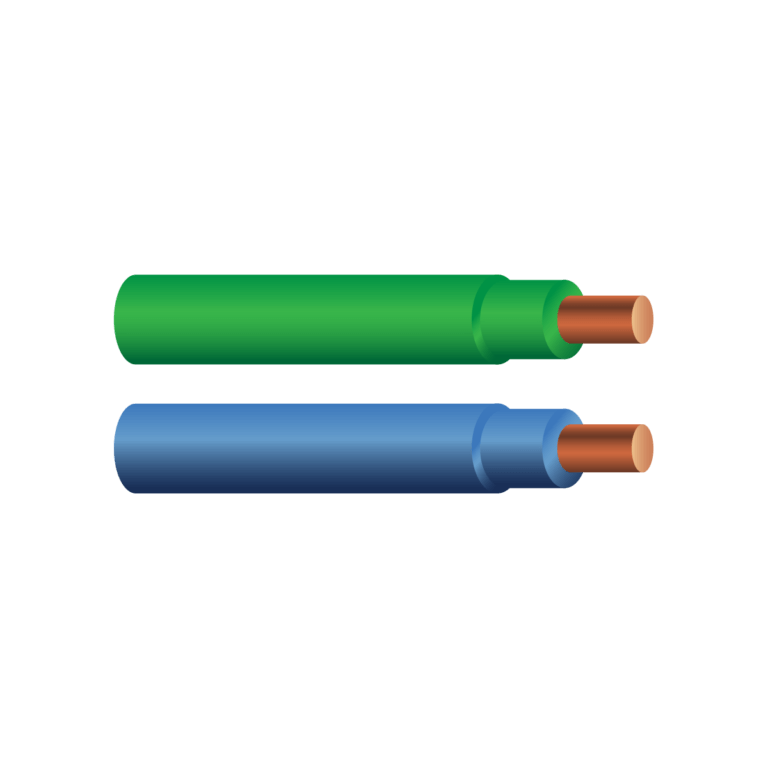

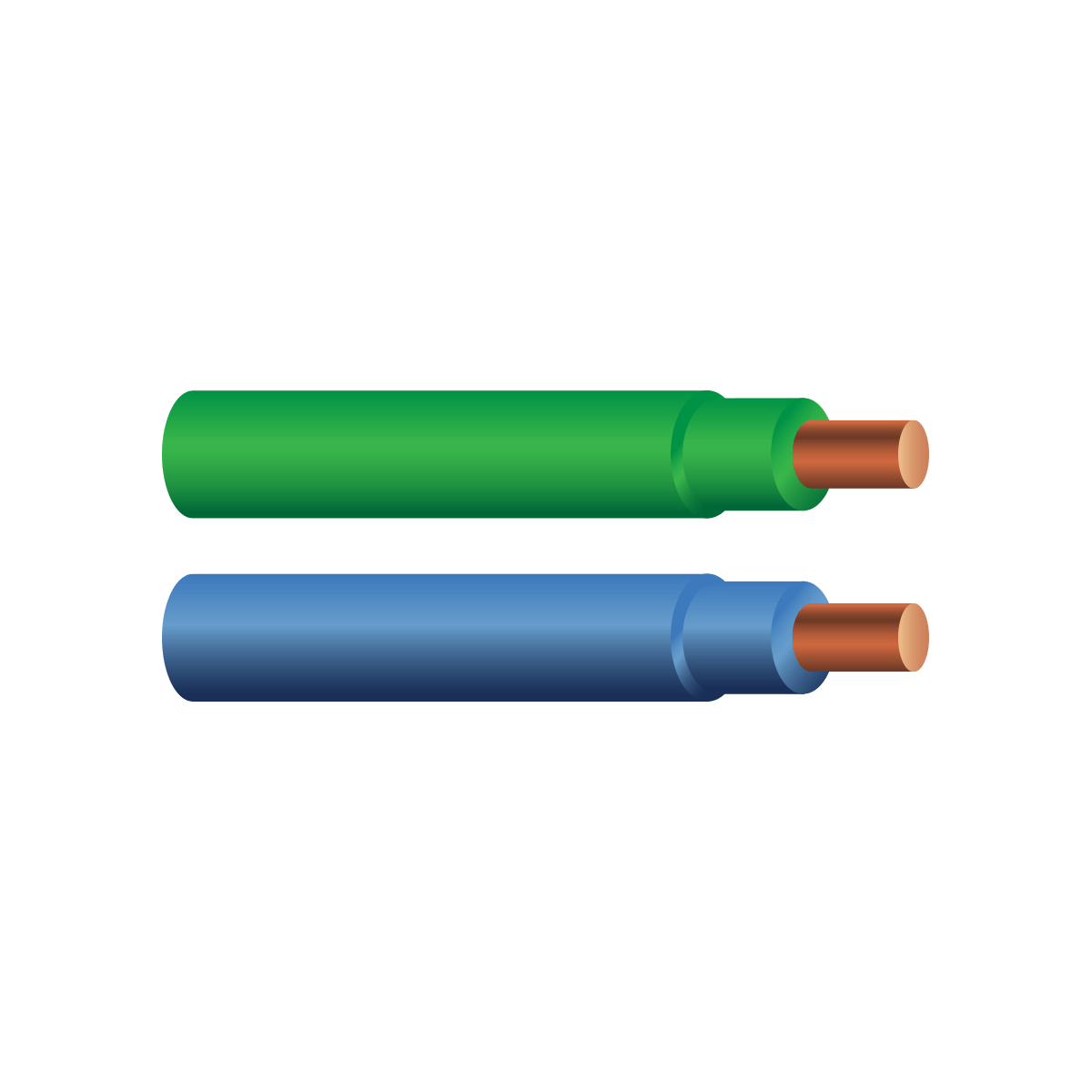

Copper TFN

Copper TFN has a Solid Copper conductor with a high-heat/moisture resistant PVC Thermoplastic (T) insulation and a Fixture Nylon (FN) jacket. It is primarily used in low voltage applications up to 600 volts for locating buried gas, water, sewer, electric and telephone lines in commercial, industrial or residential applications. The wire should not be used in areas with temperatures exceeding 90°C.

SKU 704 Category Tracer Wire Tag Locating

Brand: Pro-Line Safety

See More Information →

Details
Data Tables

Details

Conductor Core Material:
Copper
Conductor Core Type:
Solid
Gauge:
16 AWG | 18 AWG
Reel Size:
500’ | 1000’ | 2500’
Insulation Material:
Polyvinyl Chloride (PVC)
Jacket Material:
Nylon (Polyamide) or UL-Listed equivalent
Insulation Thickness:
15 mil
Jacket Thickness:
4 mil
Color:
Environment:
Construction Site, Gas & Liquid Pipeline, Outdoor, Sewer Pipeline, Underground, Utility Conduit System, Water Pipeline
Environmental Protection:
Gasoline Resistant, Heat Resistant, Moisture Resistant, Oil Resistant
Application:
Locating
Industry:
Construction, Sewer Utility, Electric Utility, Oil & Gas Utility, Telecommunications Utility, Water Utility
Compliance:
APWA Color Code, ASTM Standards, National Electrical Code, UL Standards
Associated Brand:
Pro-Line

Data Tables

Ordering Information (Weights, Measurements, and Packaging)
Part #	Gauge Size	Conductor Core Type	Insulation Thickness	Jacket Thickness	Outer Diameter	Weight (Per 1,000′)	Reel Sizes
70401XXXX	18 AWG	Solid	0.015” (15 MIL)	0.004” (4 MIL)	78 mm	7.0 lbs	500′ \| 1,000′ \| 2,500′
70402XXXX	16 AWG	Solid	0.015” (15 MIL)	0.004” (4 MIL)	89 mm	10.5 lbs	500′ \| 1,000′ \| 2,500′

Color Part #		Reel Size Part #
Black	01XX	500′	32
Blue	02XX	1,000′	41
Green	05XX	2,500′	47
Orange	06XX
Purple	08XX
Red	09XX
White	11XX
Yellow	12XX
