Pro-Trace HS-CCS PE30/PE45

Details

Conductor Core Material:
High-Strength Copper Clad Steel (HS-CCS)
Conductor Core Type:
Solid
Gauge Size:
8 AWG | 10 AWG | 12 AWG | 14 AWG | 16 AWG | 18 AWG
Reel Size:
500’ | 1000’ | 2500’ | 5000’
Insulation Material:
High-Density, High Molecular Weight Polyethylene (HDHMWPE)

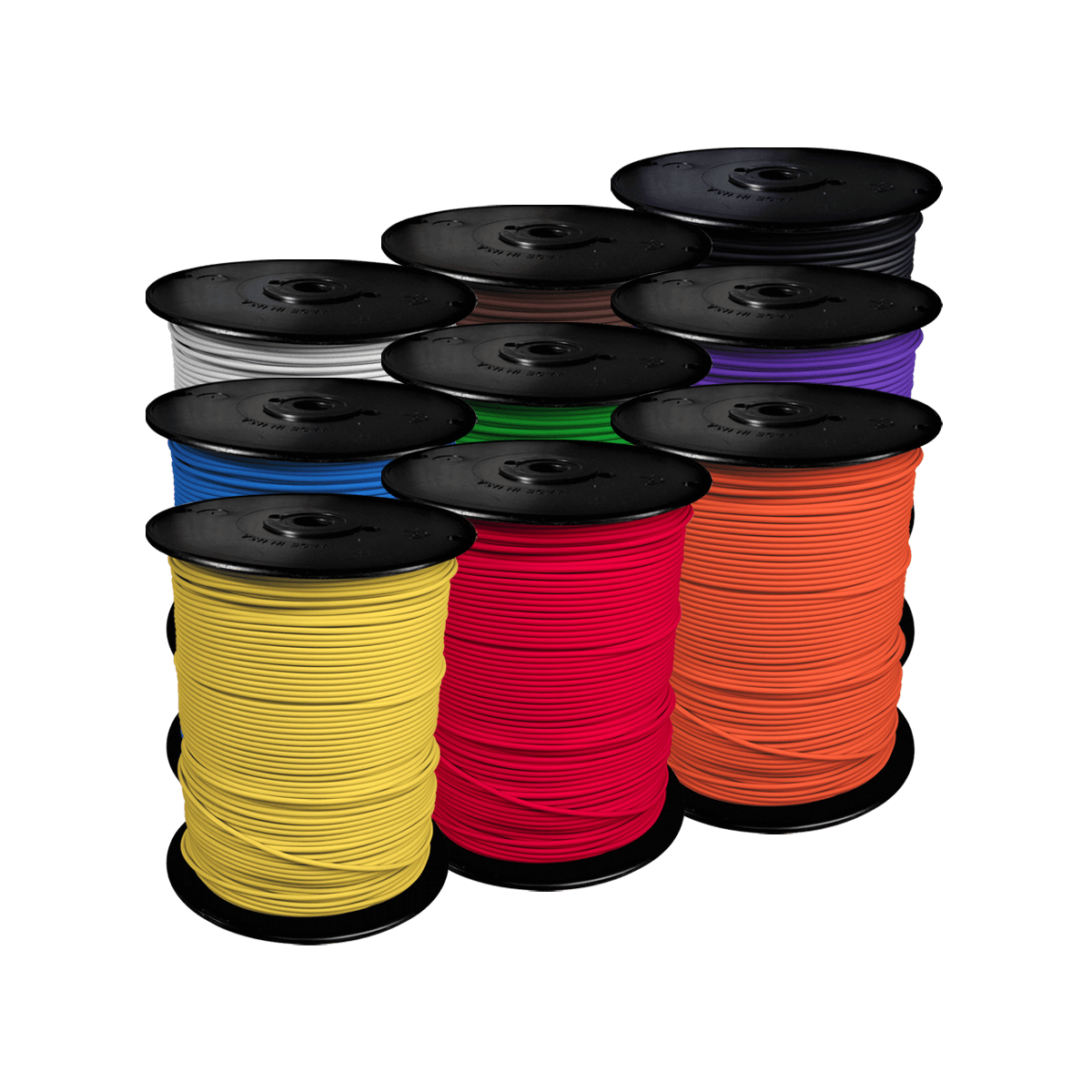

Color:
Black, Blue, Brown, Green, Orange, Purple, Red, White, Yellow
Insulation Thickness:
30 mil | 45 mil
Environment:
Outdoor, Underground
Environmental Protection:
Abrasion Resistant, Chemical Resistant, Crush Resistant, Impact Resistant, Moisture Resistant, Oil Resistant
Application:
Locating
Industry:
Electric, Oil & Gas, Other, Telco, Water
Compliance:
AIS, APWA Color Code, ASTM Standards, BABA Act, National Electrical Code, RoHS, UL Standards

Insulation (Physical, Mechanical and Electrical Properties)
Test Description	ASTM Standard	Typical Values
Density @ 23°C	ASTM D1505	0.945 g/cm³
Melt Flow Rate	ASTM D1238	0.70 g/10 min
Tensile Strength	ASTM D638	3,400 psi
Tensile Strength Retention	ASTM D638	90% after 48 hours @ 100°C
Tensile Elongation	ASTM D638	500%
Tensile Elongation Retention	ASTM D638	90% after 48 hours @ 100°C
Environmental Stress Cracking	ASTM D1693	0 failures @ 48 hours
Thermal Stress Cracking	ASTM D2951	0 failures @ 96 hours
Brittleness Temperature	ASTM D746	-76°C
Melting Temperature	ASTM D3418	260°C
Oxidative Induction Time	ASTM D3895	170 min @ 200°C
Dielectric Constant	ASTM D1531	2.32 @ 1 MHz
Dissipation Factor	ASTM D1531	0.00006 @ 1 MHz
DC Volume Resistivity @ 23°C	ASTM D257	> 1 x 10¹⁵ ohm-cm
