CCS Grounding Wire

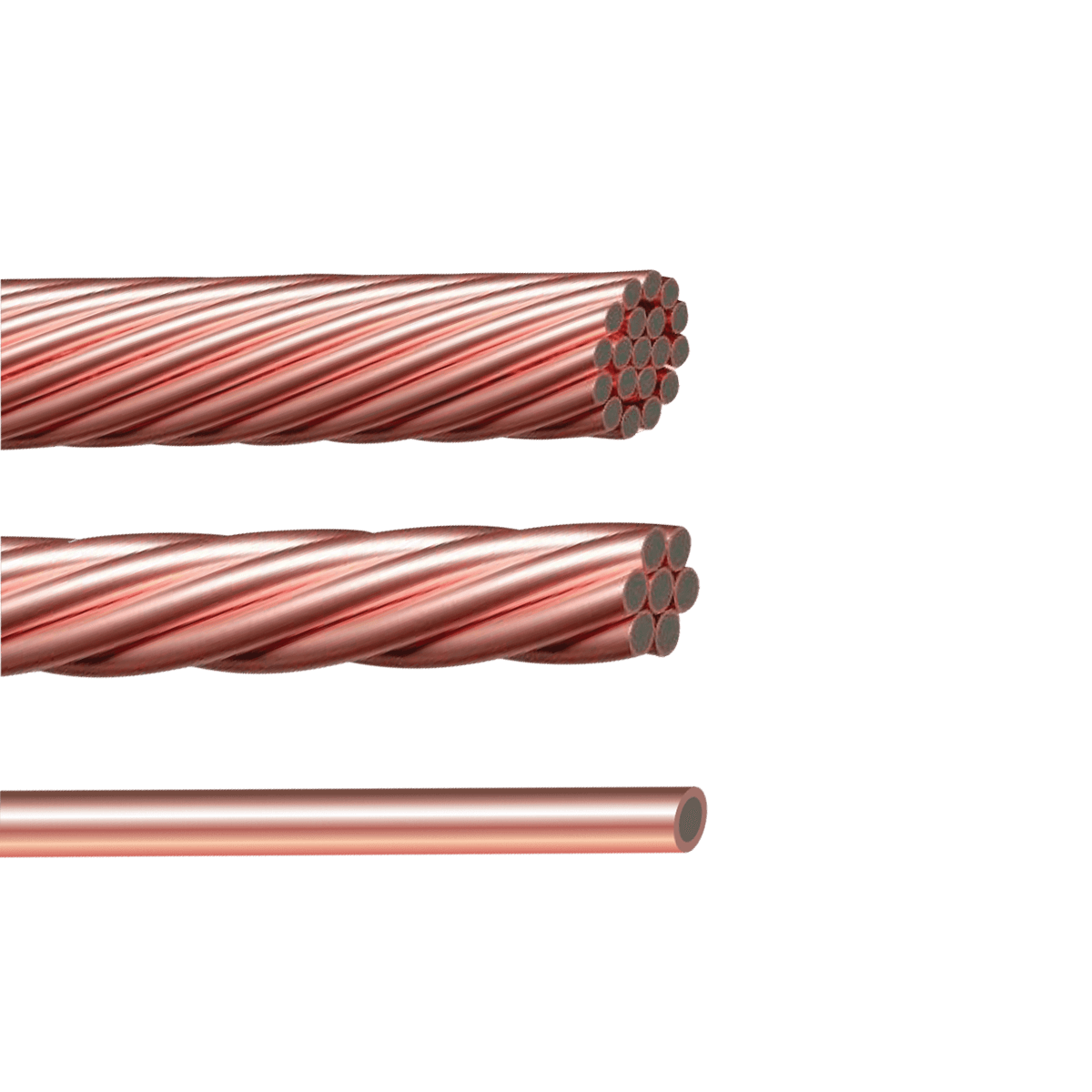

Designed for durability and reliable conductivity, our Copper-Clad Steel (CCS) Grounding Wire combines the strength of a low-carbon steel core with the superior corrosion resistance of copper cladding. Ideal for a wide range of grounding applications in power and communication systems.
- 40% IACS conductivity with excellent corrosion resistance
- Low-carbon steel core metallurgically bonded to copper
- Suitable for power generation, transmission, distribution, and telecom networks
- Available in various reel sizes based on package length and type
Associated Brand: Pro-Line Safety
Details
Conductor Core Material:
Copper-Clad Steel (CCS)Conductor Core Type:
Solid | 7-Strand | 19-StrandGauge Size:
4 AWG | 6 AWG | 7#5 | 7#6 | 7#8 | 7#9 | 19#5 | 19#6 | 19#7 | 19#8 | 19#9Application:
Grounding Power, LocatingAssociated Brand:
Pro-LineCompliance:
ASTM Standards
Data Tables
| Part # | Gauge Size | Strand Count | Strand Diameter | Cable Diameter | Cross Sectional Area | Minimum Break Load | Nominal Weight | DC Resistance @ 20 ÌŠ C |
| CCS40-0104D | 4 AWG | Solid | 5.19 mil | 5.19 mil | 21.2 mil² | 1,311 lbsf | 117.1 lbs/kft | 0.6337 Ω/kft |
| CCS40-0106D | 6 AWG | Solid | 4.12 mil | 4.12 mil | 13.4 mil² | 824 lbsf | 73.6 lbs/kft | 1.0076 Ω/kft |
| CCS40-0705D | 7#5 | 7-Strand | 4.63 mil | 13.87 mil | 117.5 mil² | 6,548 lbsf | 656.2 lbs/kft | 0.1153 Ω/kft |
| CCS40-0706D | 7#6 | 7-Strand | 4.12 mil | 12.35 mil | 93.2 mil² | 5,194 lbsf | 520.3 lbs/kft | 0.1454 Ω/kft |
| CCS40-0707D | 7#7 | 7-Strand | 3.67 mil | 11.00 mil | 73.9 mil² | 4,116 lbsf | 412.9 lbs/kft | 0.1833 Ω/kft |
| CCS40-0708D | 7#8 | 7-Strand | 3.27 mil | 9.80 mil | 58.6 mil² | 3,268 lbsf | 327.3 lbs/kft | 0.2312 Ω/kft |
| CCS40-0709D | 7#9 | 7-Strand | 2.91 mil | 8.72 mil | 46.5 mil² | 2,585 lbsf | 259.5 lbs/kft | 0.2915 Ω/kft |
| CCS40-1905D | 19#5 | 19-Strand | 4.63 mil | 23.11 mil | 318.7 mil² | 17,775 lbsf | 1,788.0 lbs/kft | 0.0427 Ω/kft |
| CCS40-1906D | 19#6 | 19-Strand | 4.12 mil | 20.58 mil | 252.8 mil² | 14,098 lbsf | 1,418.0 lbs/kft | 0.0538 Ω/kft |
| CCS40-1907D | 19#7 | 19-Strand | 3.67 mil | 18.33 mil | 200.5 mil² | 11,183 lbsf | 1,125.0 lbs/kft | 0.0678 Ω/kft |
| CCS40-1908D | 19#8 | 19-Strand | 3.27 mil | 16.32 mil | 159.0 mil² | 8,870 lbsf | 892.0 lbs/kft | 0.0855 Ω/kft |
| CCS40-1909D | 19#9 | 19-Strand | 2.91 mil | 14.53 mil | 126.1 mil² | 7,018 lbsf | 707.3 lbs/kft | 0.1078 Ω/kft |
