Choosing the Right Marker for the Right Situation

A permanent utility marker may seem simple, but its job is anything but. At its core, a permanent marker creates awareness—alerting anyone nearby to the presence and approximate location of buried infrastructure.

That awareness is critical, especially when year after year, the Common Ground Alliance’s Damage Information Reporting Tool (DIRT) Report continues to show that one of the leading root causes of underground utility damage is the failure to notify 811 before digging.

In other words, many damages happen before a shovel ever hits the ground, because someone didn’t know there was something to hit.

Permanent markers serve as a constant, visible reminder that underground facilities exist. When done correctly, they prompt awareness, hesitation, and safer behavior.

Awareness starts before the locate request

The DIRT Report consistently reinforces a key truth: damage prevention is a shared responsibility, and public awareness plays a major role in reducing risk. While 811 notifications and professional locates are essential, they often occur only after a project is already planned.

Permanent markers help move awareness upstream, reaching excavators, property owners, farmers, maintenance crews, and even recreational users before work begins.

A visible marker can be the difference between an excavator calling 811—or incorrectly assuming it’s safe to dig.

That’s why selecting the right marker for the right situation matters.

Population density matters

Not all environments tolerate the same type of marker. In rural areas, larger and taller posts are often acceptable and expected. Visibility over long distances and through vegetation is the priority.

In suburban areas, subdivisions, retail corridors, and HOA-controlled neighborhoods, aesthetics become a factor. Homeowners may resist tall, brightly colored posts in their front yards, even if they are functionally effective. In these settings, low-profile posts, surface markers, or signage integrated into the landscape may be more appropriate.

Urban environments present their own challenges.

When concrete dominates the landscape and space is limited, freestanding posts may not be practical at all. At-grade markers such as soilmarkers, pavement decals, and curb markers provide a clear, durable warning message in locations where traditional above-ground posts are impractical or prohibited. They integrate seamlessly into high-traffic environments while still delivering critical visibility and awareness of buried utilities.

The key is balancing visibility with acceptability—because a marker that gets removed or rejected protects nothing.

Environmental Conditions Must Be Considered

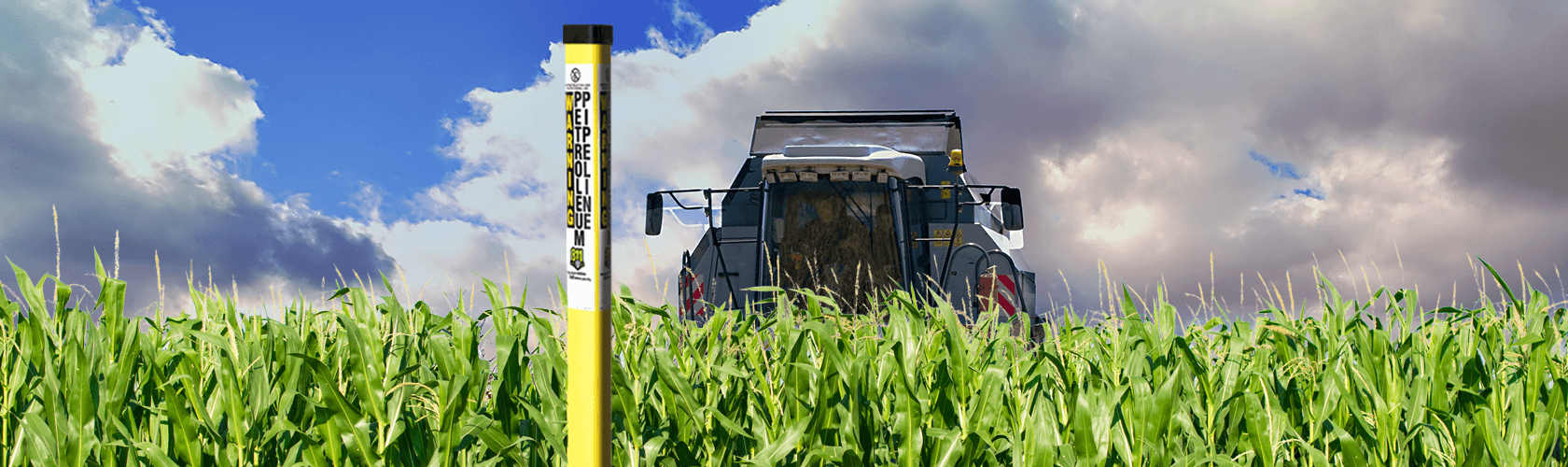

The environment plays a major role in marker performance. In agricultural areas with tall crops like corn, sorghum, or sugarcane, short markers can disappear entirely during the growing season. Even roadside grasses and drainage ditches can obscure warning messages if marker height isn’t considered.

Color also matters. A white marker may be highly visible with the greenness of summer but nearly invisible against snow-covered ground in winter. Choosing colors that contrast with the surrounding environment helps ensure year-round visibility.

Climate exposure is another critical factor. In regions with intense sunlight—such as desert environments—UV degradation can quickly fade or destroy warning messages if inferior materials are used. Wind-prone areas introduce additional concerns, as vibration and fatigue can loosen hardware or cause signs to fail over time.

And in rocky or compacted soils, installation itself becomes a challenge. Markers designed to be driven into hard ground or mounted to U-channel posts can significantly reduce installation difficulty and long-term maintenance issues.

Safety is non-negotiable

Permanent markers exist to improve safety—but poorly designed markers can introduce new hazards.

For a marker to be effective, its message must be visible from all directions. A single-sided warning only protects half the right-of-way. Likewise, markers located in high-traffic areas must be designed to withstand impact. A marker that snaps off or lies flat after being struck by a vehicle, ATV, or farm equipment is no longer doing its job.

Material choice also matters here as metal posts can pose serious safety risks when struck.

Standard fiberglass posts, if not properly manufactured, can degrade under UV exposure, leading to “fiberbloom”—a fuzzy surface that can irritate skin and create hazards for people and animals.

The goal is durability without danger: markers that rebound, remain upright, and continue communicating their warning long after installation.

Permanent markers support the bigger picture

As part of a comprehensive operations, maintenance, and public awareness program, permanent markers help ensure that buried facilities are not forgotten simply because they are out of sight.

No matter what type of utility you’re protecting – gas pipeline, water, sewer, communications, or electric – the right marker, properly selected for its environment plays a quiet but powerful role in keeping people safe and infrastructure intact.

Understanding Utility Marker Types and Their Applications

The utility marker world covers many solutions that match specific environmental conditions and infrastructure types. These tools create a vital communication link between utility owners, excavators, and the general public. Let’s head over to the main types of utility markers and see how they work in the field.

Utility Marking Flags

Temporary utility flags quickly show the approximate location of underground utilities. These brightly colored flags come in a variety of sizes with fully customizable printed legends. The American Public Works Association (APWA) color code system makes these flags easy to spot. To name just one example, red flags show electric power lines and blue marks potable water.

Marking flags are the best temporary marker, because workers can place them quickly before work begins or in emergency situations. Environmental factors such as wind, heavy equipment, or vandals can easily affect marking flags, making them unsuitable for permanent making situations.

Above-Ground Utility Markers: TriView®, RhinoDome™, and Flat Fiberglass Posts

Open areas such as farm fields, utility ROWs, and roadsides require above-ground marking posts to ensure year-round protection. There are three main types of marking posts that are commonly used, and choosing the correct post for each application is crucial.

TriView® Marking Posts are made from a proprietary thermoplastic blend called RhinoPoly. They are APWA color coded and have a triangular shape with warning decals on each side making them visible from 360˚. The factory-installed Flex PLUS™ Rod adds maximum durability and rebound assistance in areas where posts are likely to be struck by vehicles, or heavy machinery.

TriViews work especially well in rural or developing areas where landowners are less likely to call for a locate before breaking ground. With heights ranging from 48 to 120 inches, these versatile posts are perfect for areas with tall crops and overgrown vegetation.

RhinoDomes™ are bullet-style marking posts and feature a rounded APWA color coded topper and standard white base. The large surface area of this post ensures it can be seen from all directions. Warning legends are hot stamped directly into the post in two locations, ensuring the warning message will remain visible throughout the entire lifespan of the marker. With limited flexibility and rebound performance, dome posts work well in low traffic areas where visibility is a priority.

Flat Fiberglass 3-Rail Posts have been the industry standard for decades. They are comprised of pultruded fiberglass set in a composite resin that can be APWA color coded. Warning decals can be placed on both sides alerting contractors and the public that there is a buried utility in the area.

Fiberglass post’s thin profile means that it is less visible from all directions and could break if impacted on the thin sides. These posts should be driven onto the ground in low traffic areas where soil conditions are not suitable for hand digging.

Surface-Mounted Markers: A-Tags, Pavement Decals, and Soil Markers

Cities and urban areas often need surface-mounted markers where above-ground posts are not practical. There are various types that can either be driven onto soil or sunk into setting concrete or asphalt. All types can be APWA color coded and molded with custom legends.

A-Tag™ Markers are used in roadways and sidewalks to provide a durable message that can withstand snowplows and other heavy traffic.

SoilMarkers come in two standard sizes; 4 inch and 7 inch with barbed stakes. They can be easily driven in to most soil conditions and provide a low-profile message that can be mowed over without being damaged.

Pavement decals are a great option when considering length and type of warning message. Their non-slip surface can be custom printed in full color and come in almost any size imaginable.

Ensuring Compliance and Safety in Marker Deployment

Utility marker deployment goes beyond just picking the right markers. You need smart placement and must follow industry standards. The Common Ground Alliance DIRT report shows that utility damages happen 20-30% of the time because there was a failure in calling for a locate request. Utility markers act as the public-facing message warning anyone who intends to break ground of the approximate location of a buried utility. Clear and consistent messaging helps protect against damages that can disrupt service, cause life-threatening accidents, and cost upwards of tens of thousands to repair.

How Far Apart Do Utility Markers Need to Be?

The right spacing between markers depends on several factors including the utility type, landscape environment, and requirements from local/federal agencies. When planning for a permanent making system you should read and understand all regulations required in your area, or those imposed by the utility owner. Here is a short list of common considerations:

• You should able to see one marker from another (generally no more than 500 feet apart)

• Markers should be brightly colored and have a clear warning message with any applicable emergency contact information

• Marked lines should be easy to follow when there is a change in direction

• Marking posts should be placed at the top and bottom of a hill to ensure visibility

• Areas where people dig often need more markers

Markers in farmland with tall crops like corn need to be closer together and taller. They must stay visible throughout every seasonal change.

Utility Markers Color Coding by APWA Standards

The American Public Works Association (APWA) created a color code system that everyone in the industry now uses to mark underground utilities:

Red: Electric power lines, cables, conduit Yellow: Gas, oil, steam, petroleum Orange: Communication, alarm, signal lines Blue: Potable water Green: Sewers and drain lines Purple: Reclaimed water, irrigation Pink: Temporary survey markings White: Proposed excavation

This system helps workers spot utility types quickly, no matter where they are. Each marker must use these colors so everyone can recognize them and stay safe.

Meeting DOT and Local Safety Regulations

The Department of Transportation (DOT) sets rules for marker placement near roads and public areas. These rules cover:

• How visible markers need to be (reflective properties)

• How tough they must be against impacts

• Their size and how tall they should be

• What warning messages must say

Markers need to be visible from all angles to work. Pipeline and cable safety relies on excavators and the public being able to see these markers from any direction.

Local rules might add extra requirements, especially in cities where looks matter. Some urban areas limit above-ground markers. That’s why flush-mounted options like A-Tags help mark utilities safely while keeping things looking neat. Surface markers must also handle tough weather and stay put through freezing, thawing, and wear.

Utility Marking System

Knowledge of two key differences shapes our understanding of a utility marking systems’ architecture – marker deployment patterns and technology types. These differences determine how we protect, locate, and manage utilities throughout their lifecycle.

Point Markers vs Path Markers in Utility Networks

Point markers and path markers play distinct roles in utility networks based on how we install and use them.

Teams install point markers vertically to identify specific facility features or components. These markers excel at showing the exact location of valves, joints, handholes, service connections, and transitions between different utility types.

Path markers work differently. They run horizontally along buried underground facilities and show continuous line direction and location information for the entire utility. This creates a traceable path that locators can follow even when surface markers get damaged or disappear. Path marking becomes crucial in complex utility networks or when you plan to dig in crowded environments.

Your choice between point and path marking systems depends on:

• Utility density in the area

• How often you need access

• Surface infrastructure limits

• Budget constraints

Electronic vs Passive Markers: Functional Differences

The technology inside utility markers creates another key difference that affects field operations and asset management capabilities.

Passive electronic markers don’t need power and emit utility-specific frequencies that locators can detect. These markers reflect signals from locating equipment, which makes them reliable over long periods. Ball markers, disk markers, and mini-markers belong to this group, and they work well at various depths from near-surface to 5-6 feet underground.

Programmable markers (also called iD markers) use RFID technology to store detailed facility data. Unlike simple passive markers, these advanced devices have microchips that hold coordinates, installation dates, maintenance records, and owner information—giving each underground asset its digital identity.

Many accessible surface-level identifiers—soil markers, A-Tags, curb markers, and pavement decals—are non-electronic passive markers we use mainly for visual identification. These markers serve as physical reference points without electronic parts and often work together with electronic markers to create a detailed marking strategy.

Field teams often combine RFID-enabled markers with passive visual indicators to work efficiently with modern utility management systems. This creates a multilayered protection system that handles both immediate visibility needs and long-term asset tracking requirements.

Digital Integration and Asset Management

Today’s utility management goes beyond physical markers. Digital tracking methods make infrastructure documentation more available. This digital progress builds a reliable system that protects underground assets and helps maintenance crews find data faster.

Using RFID Utility Markers for Data Storage and Retrieval

RFID-enabled utility markers work as underground data storage units that keep important information right where the assets are located. These programmable “iD markers” have microchips that store facility data such as coordinates, installation dates, and owner details. Teams can access data right at the site instead of searching through office records during emergency repairs.

RFID markers come with advanced features, but standard soil markers, A-Tags, curb markers, and pavement decals don’t include RFID technology. These traditional markers simply work as visual reference points without any electronic data capabilities.

QR Codes and Barcodes for Asset Traceability

Above-ground posts can connect physical markers to digital asset databases through mounted tags, barcodes, or QR codes when RFID technology isn’t buried underground. This creates a mixed identification system that bridges the physical and digital worlds.

The process is simple. Field technicians scan the code with their mobile devices. The system pulls complete asset information from a central database. Workers can then see detailed specifications without any special equipment. This setup lets traditional marker posts play a key role in modern asset management.

GIS Mapping Integration for Non-RFID Markers

Basic non-RFID markers become smart through proper documentation in geographic information systems (GIS). Installation teams record each marker’s exact GPS coordinates. This creates digital records that teams can access even if physical markers get damaged.

Flush-mount and surface markers combined with digital as-builts help locate underground infrastructure. Utilities can keep accurate infrastructure records without putting RFID technology at every marker point. This gives companies a cost-effective way to track digital assets across their networks.

Conclusion

Choosing the right utility markers is crucial for any operation focused on safety and efficiency. These markers work as vital warning tools to prevent damage that can be expensive to repair or cost someone their life.

Different environments just need specialized marking solutions. Rural areas work best with highly visible TriView posts. Urban settings often do better with flush-mounted options like A-Tags. Weather patterns, soil types, and installation challenges shape these choices. A single solution won’t work for every situation.

You must follow APWA color coding standards for utility marking to work. Red signals electric, yellow means gas, and blue indicates water. These universal colors help excavators quickly spot underground infrastructure whatever the location. Proper marker placement will give a clear line-of-sight between markers, especially when you have directional changes or areas with frequent excavation.

The rise of digital integration has without doubt improved traditional marking systems. RFID-enabled markers now store vital asset data right at installation points. QR codes and GIS mapping create complete management systems that connect physical markers with digital databases. This layered approach substantially improves protection and accessibility.

Note that markers serve as the final warning before potential disaster. Their modest cost is nowhere near the repair expenses, service disruptions, and safety risks from utility strikes. Smart marker selection based on specific operational needs creates lasting value through damage prevention and simplified processes. Time spent planning your marking strategy today will protect your infrastructure tomorrow.
